Schneider Electric SM6-IM MV switch-disconnector cubicle in a metal enclosure
MV switchgear

Schneider Electric SM6-IM MV switchgear cubicle

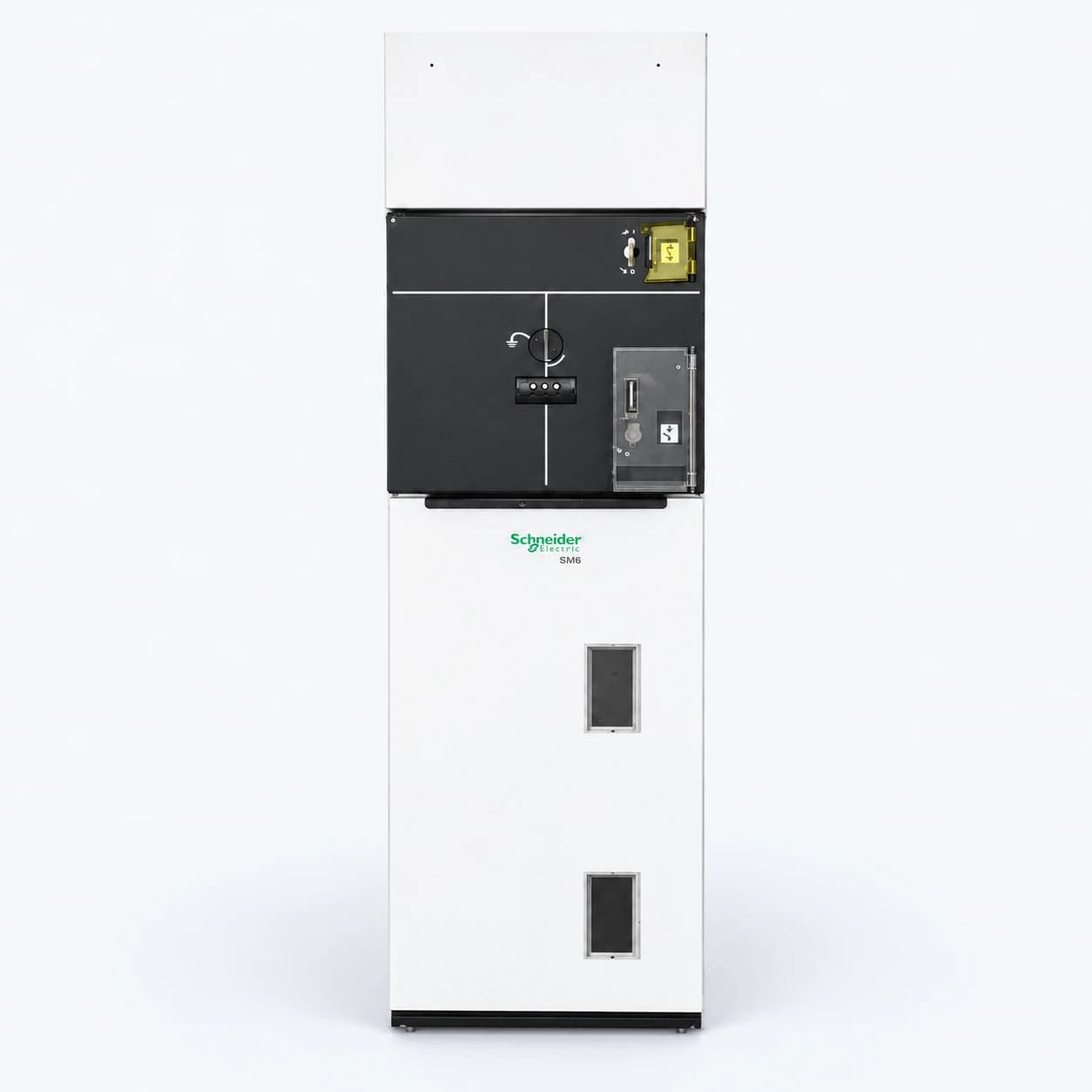

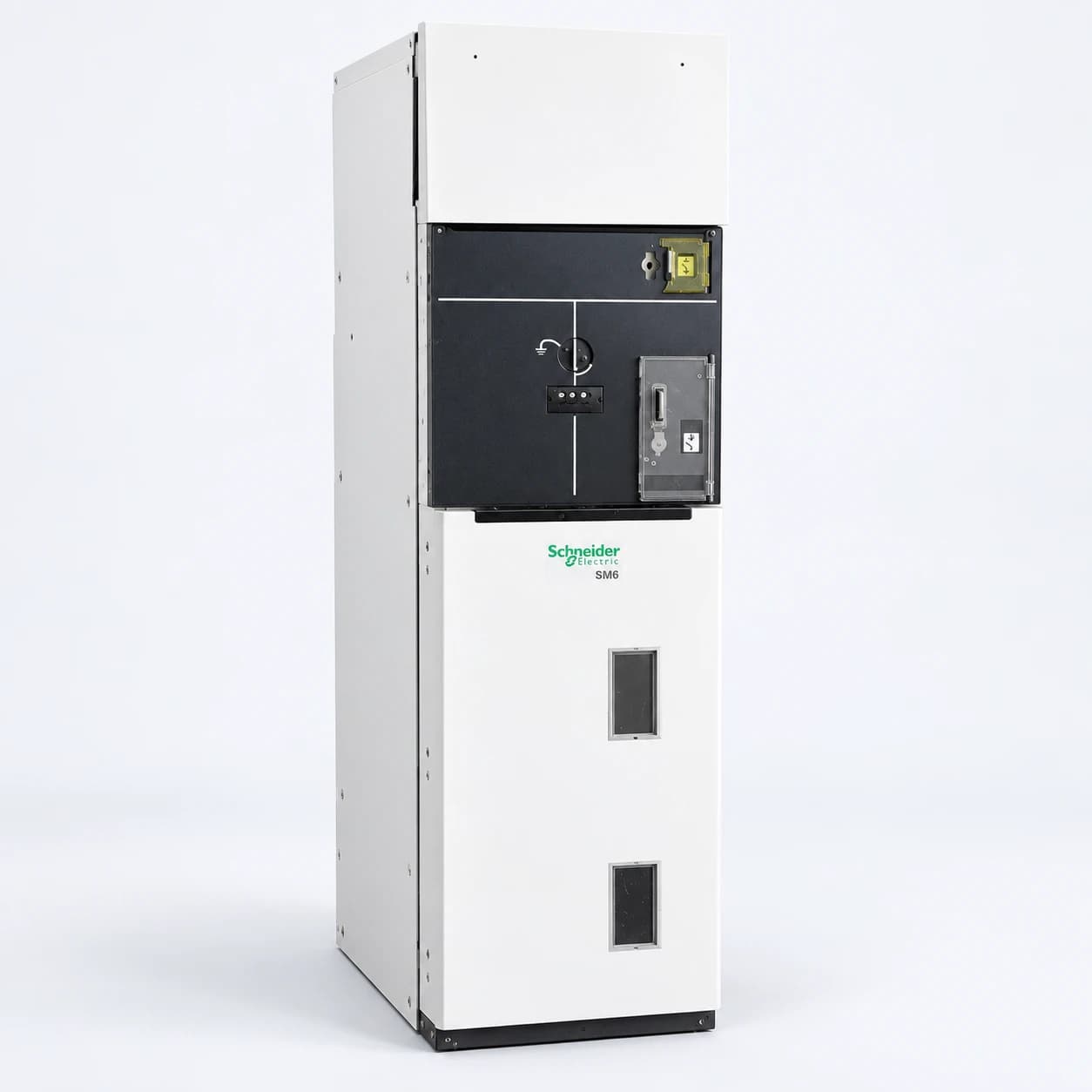

Schneider Electric SM6-IM MV switch-disconnector cubicle, 24 kV and 400 A on its nameplate, in a modular metal enclosure.

Order via WhatsAppView the technical sheet+237 674 016 011
Manufactured by
Schneider Electric
Sold by
SADERE SARL
Product type
MV switch-disconnector cubicle
Brand
Schneider Electric

Product description

The Schneider Electric SM6-IM cubicle provides the switch-disconnector function in an MV distribution substation, in a modular metal enclosure. Its nameplate records manufacture in 2012, a rated voltage of 24 kV, a rated current of 400 A and an SF6 mass of 0.210 kg. The front panel brings together the controls and the mimic diagram. For a replacement or an extension, compare these values with the electrical design, the adjacent cubicles and the maintenance records, then check the interfaces, interlocks and cable connections.

General specifications

SpecificationValue / information
Rated voltage24 kV
Rated current400 A
Network nominal voltage15 kV
Rated short-time withstand current12.5 kA
Rated duration1 s
Rated peak withstand current31.5 kA
Power-frequency withstand voltage50 kV
Lightning impulse withstand voltage125 kV
Frequency50/60 Hz
Year of manufacture2012
SF6 mass0.210 kg
SF6 pressure40 kPa
StandardsHN64S41, IEC 62271-200

Manufacturer data describes the model. The unit offered is confirmed in the quotation.

Choosing this product

Provide the single-line diagram, service voltage, required current, fault level and the references of the adjacent cubicles. Ask for the complete nameplate, test records and maintenance history of the proposed cubicle.

Frequently asked questions

Is this an SM AirSeT cubicle?

No, it is an SM6-IM: its nameplate carries the year 2012 and mentions SF6. SM AirSeT specifications do not apply to it.

Does the 24 kV nameplate confirm suitability for my network?

It gives the cubicle’s rated voltage. Suitability also depends on the service voltage, fault level, insulation requirements and the substation arrangement.

Which documents should I request before selecting?

The complete reference, connection drawings, interlock details, test results and maintenance history.

Reference and supply

  • Complete reference, condition, dimensions and availability confirmed by Sadere Sarl before quotation.

Exact model, specifications and availability to be confirmed with your quotation.

Explore related equipment

Equipment
Substation switchgear cubiclesSubstation equipment

HTA/HTB switchgear

Substation equipment selected for the network configuration and required functions. Specifications are defined for the project.

Families: HTA and HTB switchgearFunctions and configuration to be defined
View equipment
MV drop-out fuse cutout with ribbed composite insulatorMV switchgear

MV drop-out fuse cutout, composite insulator

MV drop-out fuse cutout with a ribbed composite insulator and hinged fuseholder, for protecting overhead distribution networks.

Ribbed composite insulator, hinged fuseholderFuse protection for overhead networks
View equipment
MV drop-out fuse cutout with ribbed porcelain insulatorMV switchgear

MV drop-out fuse cutout, porcelain insulator

MV drop-out fuse cutout with a porcelain insulator, for protecting branches and equipment on overhead networks.

Ribbed porcelain insulator, hinged fuseholderProtection for branches and transformers
