Polymer-housed MV surge arrester
Polymer-housed MV surge arrester, for protecting a distribution network and its equipment against overvoltages.
- Sold by
- SADERE SARL
- Product type
- Composite-housed MV distribution surge arrester
Product description

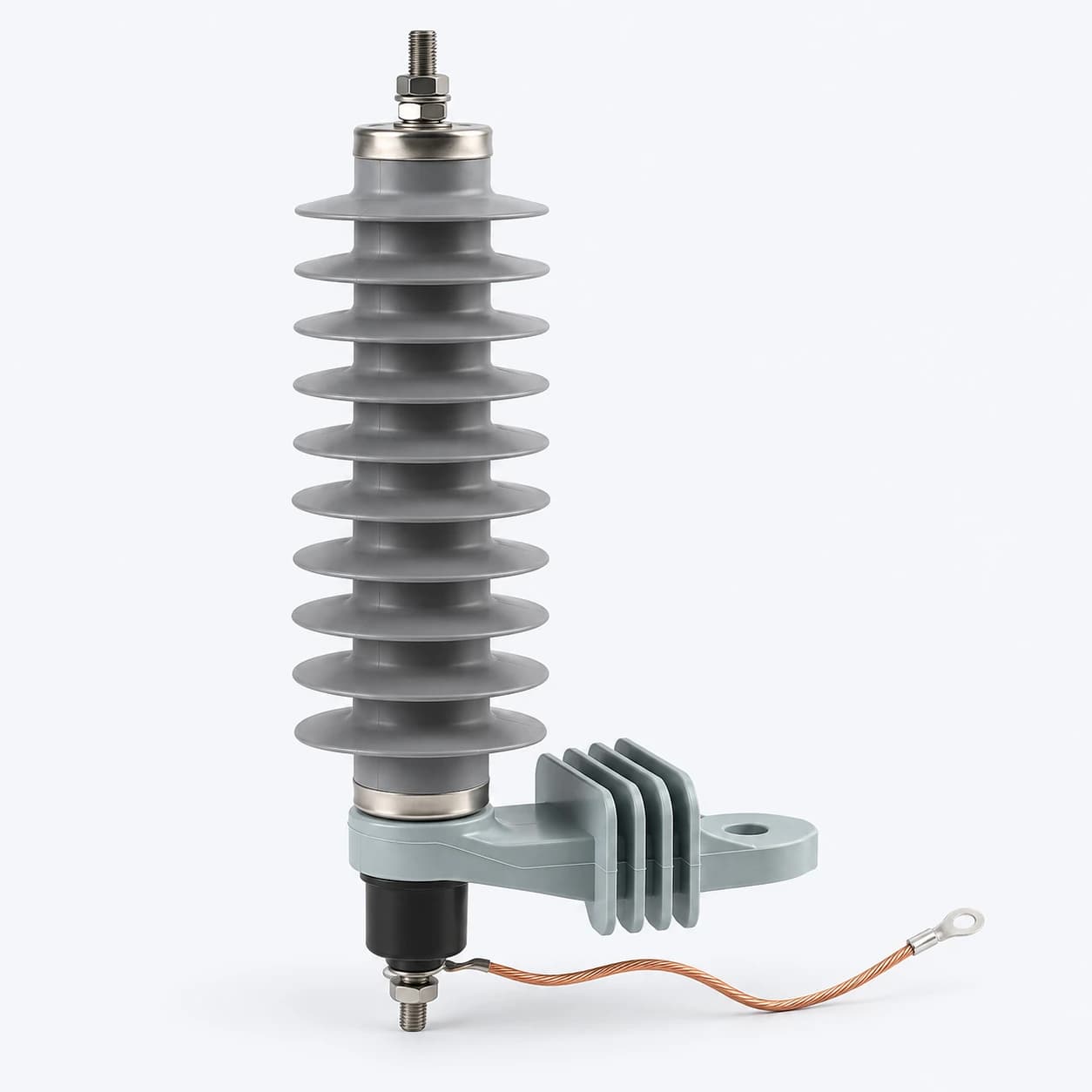

This MV surge arrester has a ribbed polymer housing, a top terminal and a mounting bracket, with an earth lead. It protects the equipment of a distribution network against overvoltages. Its selection takes account of the network’s electrical characteristics and insulation coordination: the housing shape or number of sheds cannot fix the rated voltage. The neutral earthing, overvoltage conditions and earth connection should be reviewed before choosing it. Reference, rated voltage and protection levels are confirmed in the quotation.
Recommended for
- Surge protection on an MV network
- Insulation coordination near connected equipment
- Replacing an arrester once identified
Choosing this product
State the maximum system voltage, the neutral earthing, the expected temporary overvoltages and the insulation levels of the protected equipment. Confirm the continuous operating voltage, rated voltage, protective levels and mounting arrangement.
Frequently asked questions
How is the arrester voltage selected?
It depends on the system voltages, the neutral earthing and the temporary overvoltages. Verify it against the datasheet of the proposed reference.
Does an arrester replace a fuse?
No. It protects against overvoltages; overcurrent protection is specified separately in the electrical design.
Is the earth lead included?
Confirm the supply contents, connections and earthing requirements when you make your request.
Reference and supply
- Reference, ratings, dimensions and availability confirmed by Sadere Sarl before quotation.
Exact model, specifications and availability to be confirmed with your quotation.
