Three-pole overhead MV disconnect switch

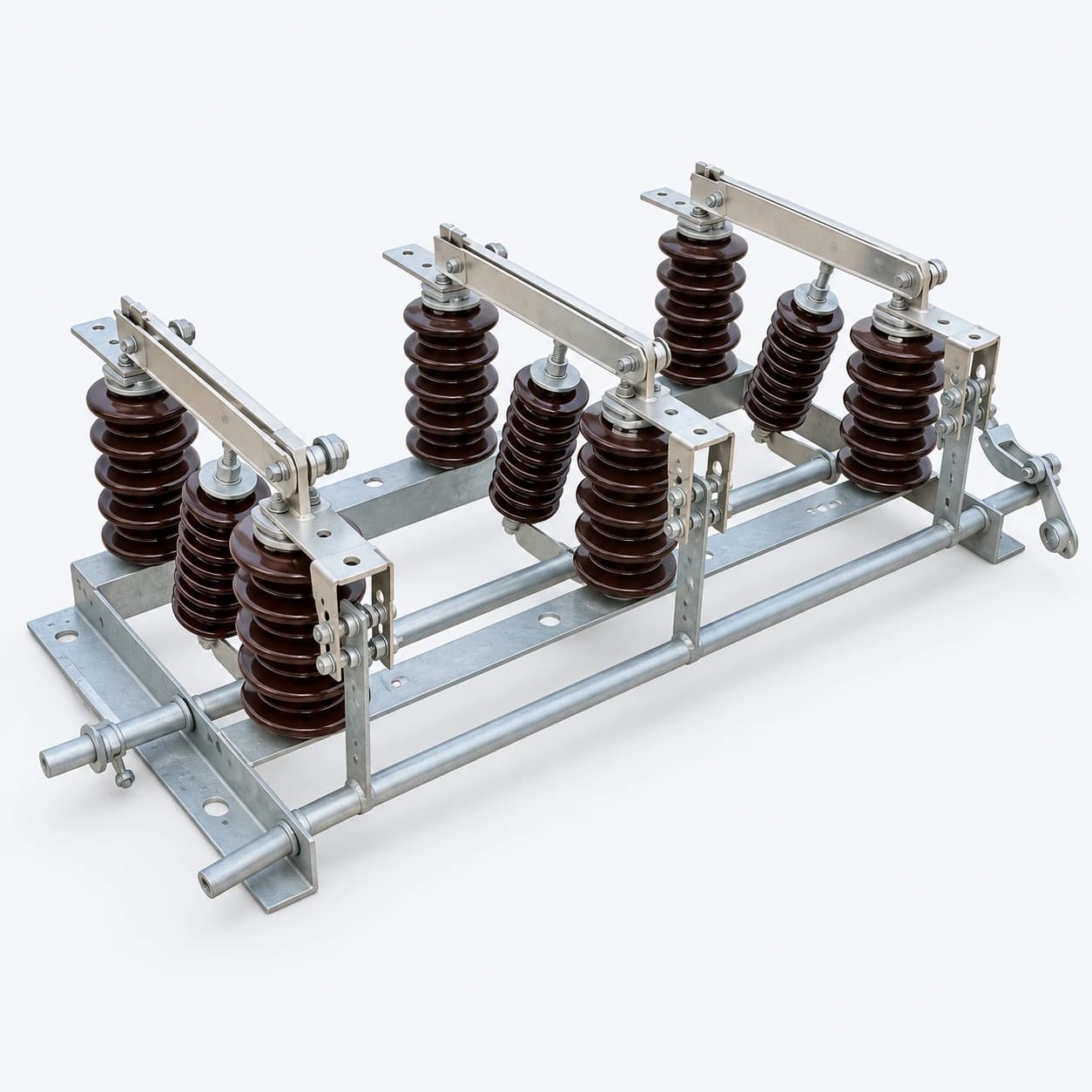

Three-pole overhead MV disconnect switch: three poles on a common metal frame, for isolating all three phases of a line.
- Sold by
- SADERE SARL
- Product type
- Three-pole MV overhead disconnect assembly
Product description
This three-pole assembly brings three poles together on a common metal frame. Porcelain insulators carry the disconnecting blades and the operating elements. It suits projects where the electrical design requires isolating all three phases. Before choosing, look at the operating arrangement, the frame interfaces and the space available on the supporting structure. Ratings, operating coordination, accessories supplied and any load-breaking capability are confirmed in the quotation.
Recommended for
- Three-phase isolation on an overhead network
- Installation on a suitable structure or support
- Comparing disconnect assemblies for a replacement
Choosing this product
Specify the voltage, current, short-circuit withstand, operating arrangement and support interfaces. Ask for the assembly drawings, the accessories included and the operating conditions.
Frequently asked questions
Are all three poles operated together?
The three poles are mounted on a common frame. The operating linkage and behaviour are checked for the proposed reference.
Does this assembly provide fault protection?
No, it provides disconnection. Fault protection is defined by the network’s protection devices and the coordination study.
Which accessories should be specified?
The operating components, mounting fittings and connections you require, then the exact supply contents.
Reference and supply
- Reference, ratings, dimensions and availability confirmed by Sadere Sarl before quotation.
Exact model, specifications and availability to be confirmed with your quotation.
